How do I identify my bell housing J-code?

It is stamped into the casting of your original Toyota A340 automatic bell housing. A J3 plate can be requested after ordering at the same price.

Can I use the front mount shifter in an SC300?

No. The front mount sits too far forward in this chassis. Use the rear mount shifter.

Is a driveshaft included?

No. Driveshafts are ordered separately. Steel and aluminum are both built on 3 inch tube, and carbon is also offered.

What do I need to supply myself?

The bell housing from an automatic 2JZ in J1, J2 or J3, and on the base kit the GM T56 slave cylinder.

What is included in the base kit?

J1/J2 adapter plate, flywheel, transmission crossmember with mount, pilot bearing, bearing rings and hardware.

What are the torque specs for the adapter plate and bell housing?

Adapter plate countersunk bolts torque to 30 ft-lb and the bell housing torques to 40 ft-lb. Both are engraved on the bottom of the plate.

Should I use thread locker on the adapter plate bolts?

No. The countersunk bolts are small and only torque to 30 ft-lb, so aggressive thread locker means stripping the heads the next time the plate comes off for service.

Do I need to cut the spud to fit the adapter plate?

No. The recess on the ASE plate is machined deep enough to clear it. This was addressed by a design change years ago, but the old advice about cutting it still circulates on forums.

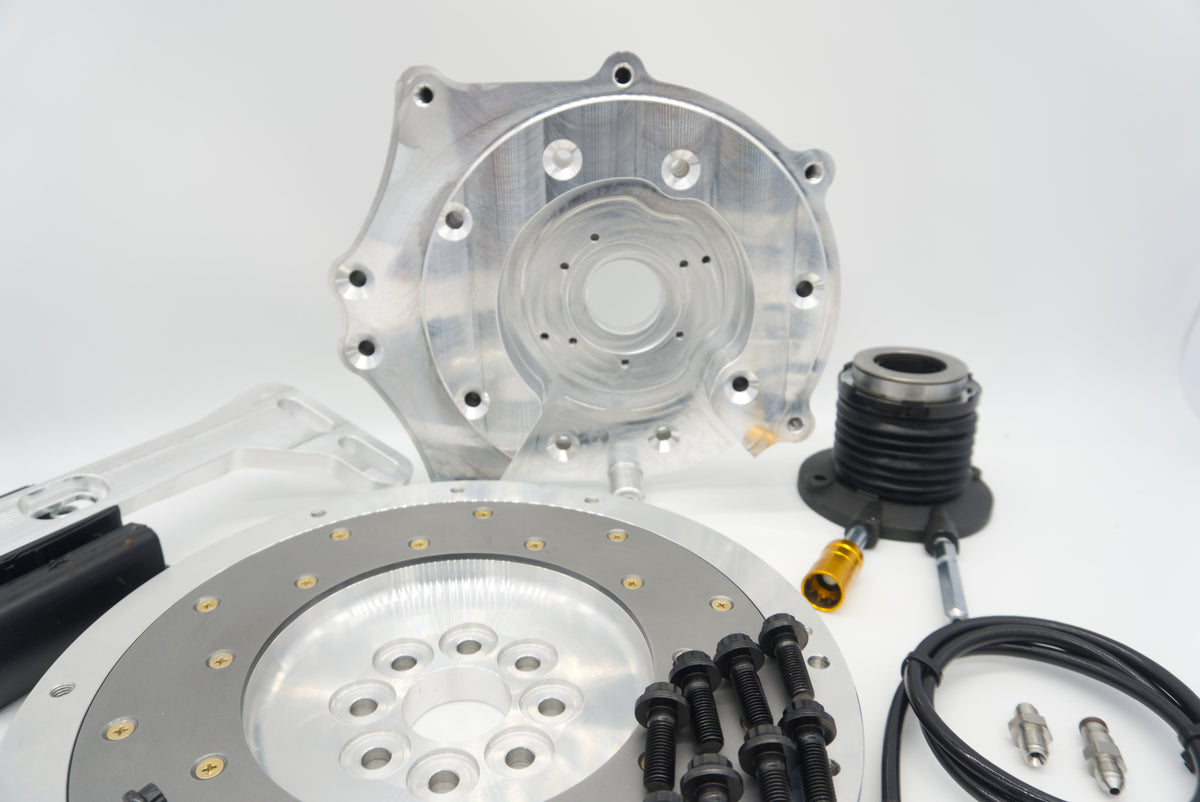

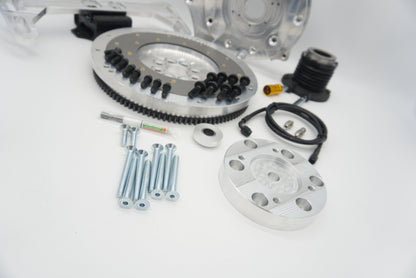

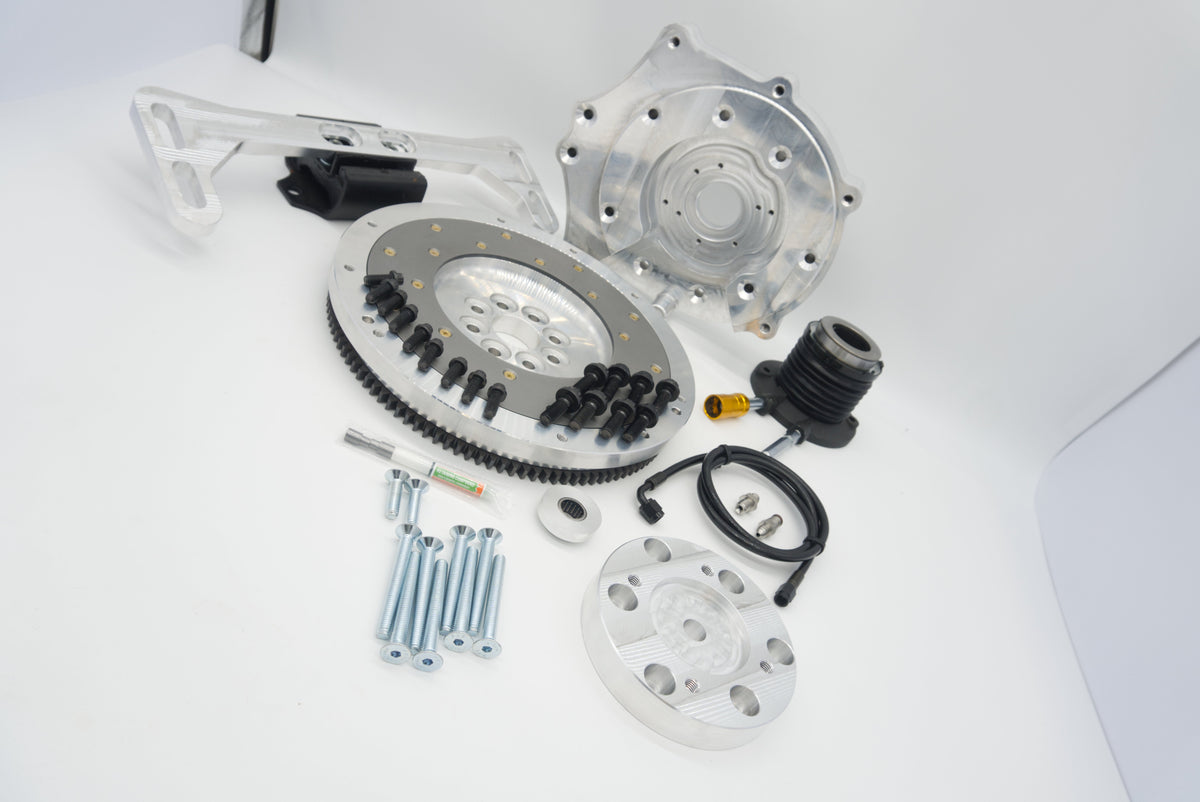

2JZGTE 2JZ 1JZ 2JZGE to SC300 CD009 Transmission Adapter

Q: Which slave cylinder does this kit use?

The T56 99 Camaro slave cylinder, installed fully compressed against the pressure plate fingers with no preload. It must go on before the bell housing is bolted to the adapter plate.

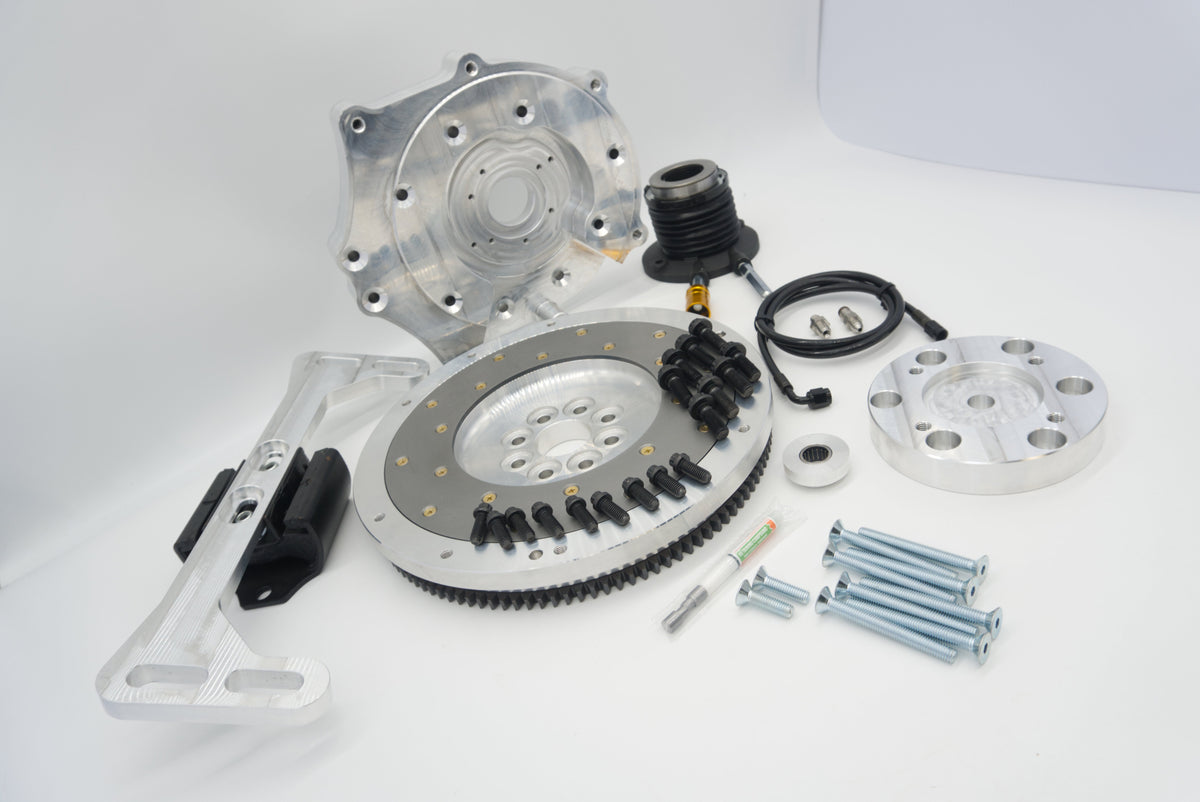

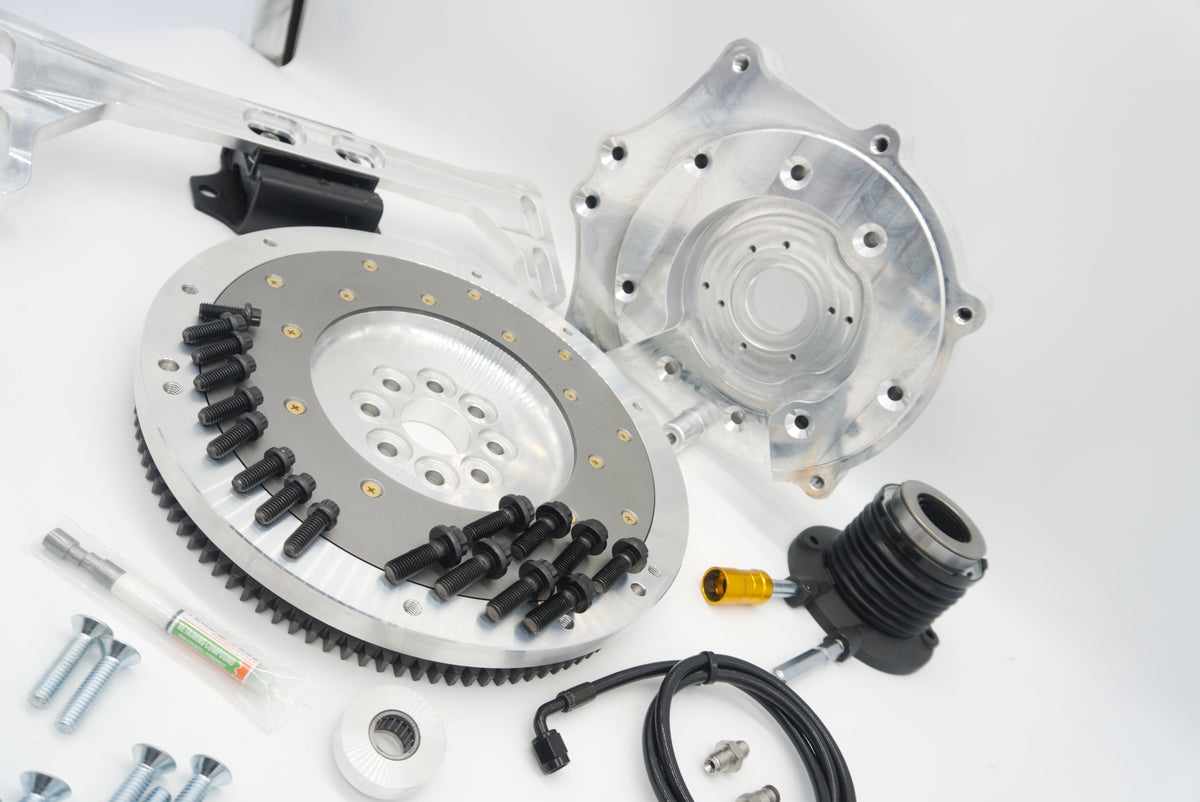

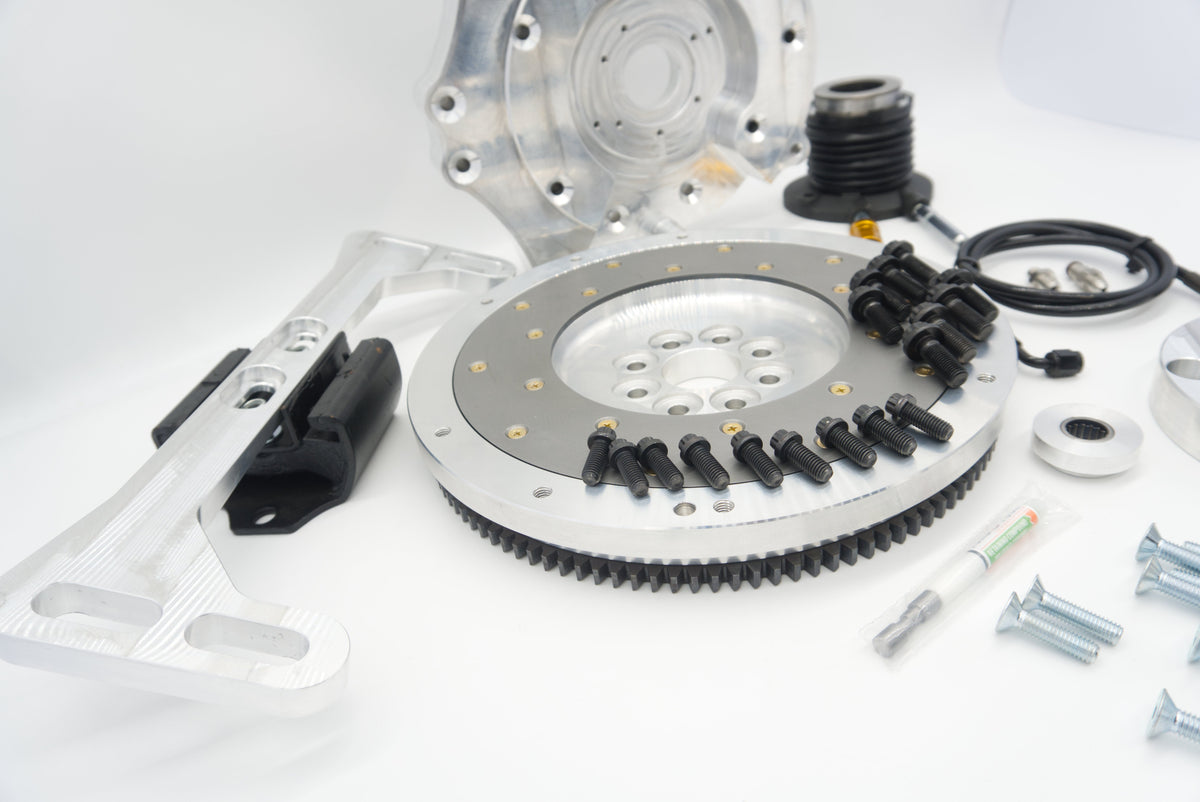

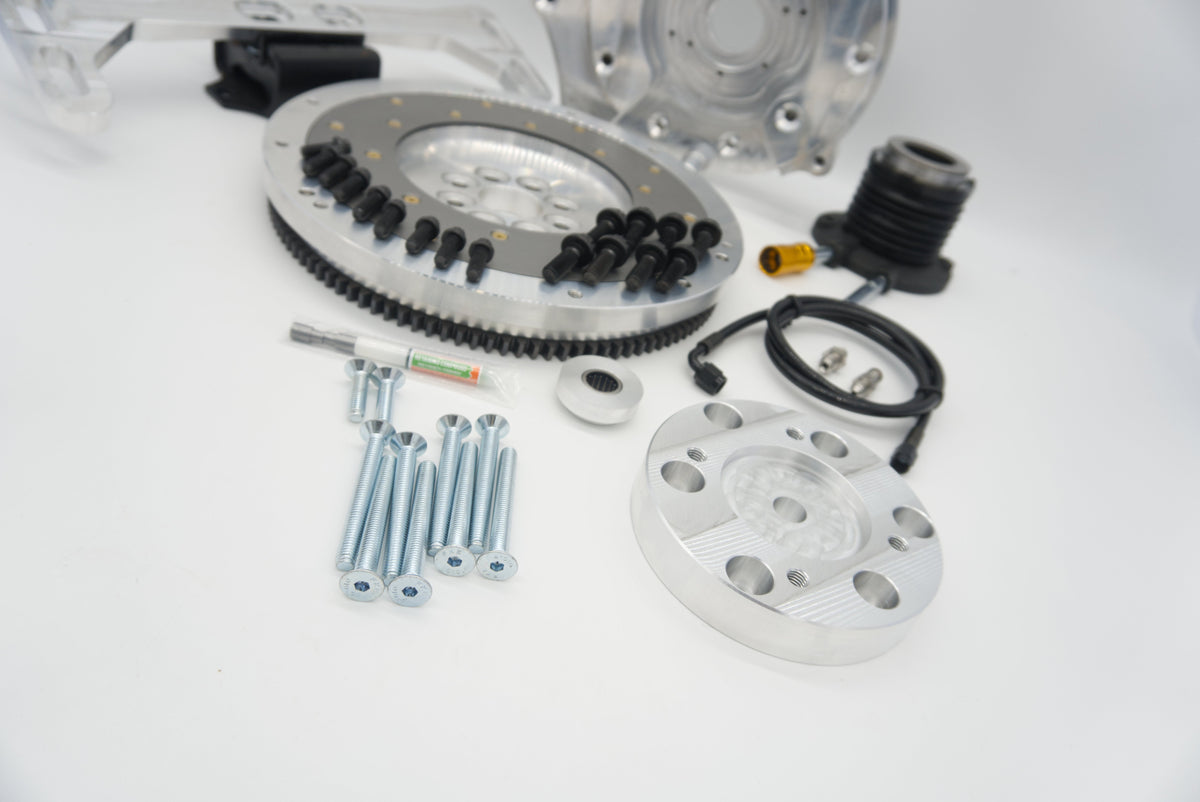

Base Kit: J1/J2 Adapter Plate, Flywheel, Transmission Crossmember & Mount, Hardware, Pilot Bearing, Bearing Rings

Precision Crafted: Billet 6061 Aluminum Aircraft Grade for durability and performance.
Compatibility: Connects 2JZGTE, 2JZ, 1JZ, 2JZGE engines to the SC300 CD009 6-speed transmission.
Enhanced Clutch Performance: Compatible with Single Disc 350Z/370Z Clutch kits from ACT, SPEC, Competition, Clutch Masters and more.
Custom Flywheel Included: ASE Custom flywheel tailored for the CD009 Clutch kit.
Easy Installation: Includes hardware to mount Slave, Adapter Plate, Flywheel, and Transmission Crossmember with Mount.
Additional Components: Pilot Bearing Adapter Bushing included. Uses Bell Housing from Automatic 2JZ (not included, J1 J2 or J3) and GM T56 slave cylinder (not included).

Identifying your bell housing — J1, J2 or J3

The J-code is stamped into the casting of your original Toyota A340 automatic bell housing. Check there before selecting. A J3 plate can be requested after ordering at the same price.

Shifter

Use the rear mount shifter in an SC300. The front mount is not usable in this chassis.

Slave cylinder

Uses the T56 99 Camaro slave cylinder for correct throw. It should sit fully compressed against the pressure plate fingers with no preload. Install it before bolting the bell housing to the adapter plate — afterwards the lines cannot be routed.
