How do I know whether I have a J1, J2 or J3 bell housing?

The J-code is stamped into the casting of your original Toyota A340 automatic bell housing. Check the casting before selecting. If you need a J3 plate you can request one after placing the order — the kits are the same price.

Can I use the front mount shifter in a Supra MKIV?

No. In an MK4 the front mount position puts the shifter in the center of the radio. Use the rear mount shifter.

Is a driveshaft included?

No. Driveshafts are ordered separately. Steel and aluminum are both built on 3 inch tube, and carbon is also offered.

What is included in the base kit?

J1/J2 adapter plate, flywheel, transmission crossmember with mount, pilot bearing, bearing rings and hardware.

What do I need to supply myself?

The bell housing from an automatic 2JZ and, on the base kit, the GM T56 slave cylinder.

What do the LHD and RHD master cylinder options mean?

They set the master cylinder bore and brand for left or right hand drive — 3/4 or 7/8 inch Tilton for LHD, 3/4 or 7/8 inch Wilwood for RHD.

What are the torque specs for the adapter plate and bell housing?

Adapter plate countersunk bolts torque to 30 ft-lb and the bell housing torques to 40 ft-lb. Both values are engraved on the bottom of the plate, though the bell housing covers the engraving once installed.

Should I use thread locker on the adapter plate bolts?

No. The countersunk bolts are small and only torque to 30 ft-lb, so aggressive thread locker means stripping the heads the next time the plate comes off for service.

Do I need to cut the spud to fit the adapter plate?

No. The recess on the ASE plate is machined deep enough to clear it. This was addressed by a design change years ago, but the old advice about cutting it still circulates on forums.

Does the bell housing need notching?

Only on the J3, where the thinner plate leaves less vertical height and the clutch lines interfere. J1 and J2 plates are thicker and need no notching.

2JZGTE 2JZ 1JZ 2JZGE to Supra MKIV MK4 CD009 Transmission Adapter

Q: Which slave cylinder does this kit use?

The T56 99 Camaro slave cylinder, which gives correct throw on the cut-version kit. It should sit fully compressed against the pressure plate fingers with no preload, and must be installed before the bell housing is bolted to the adapter plate.

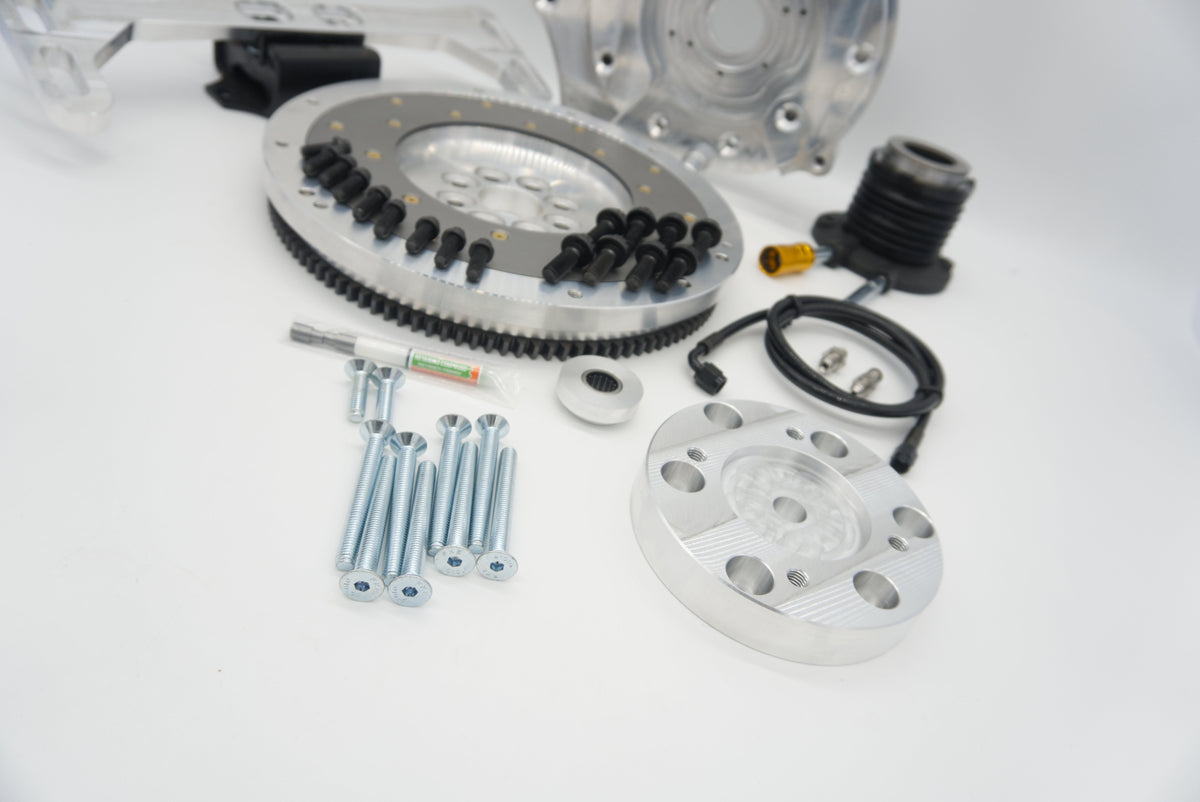

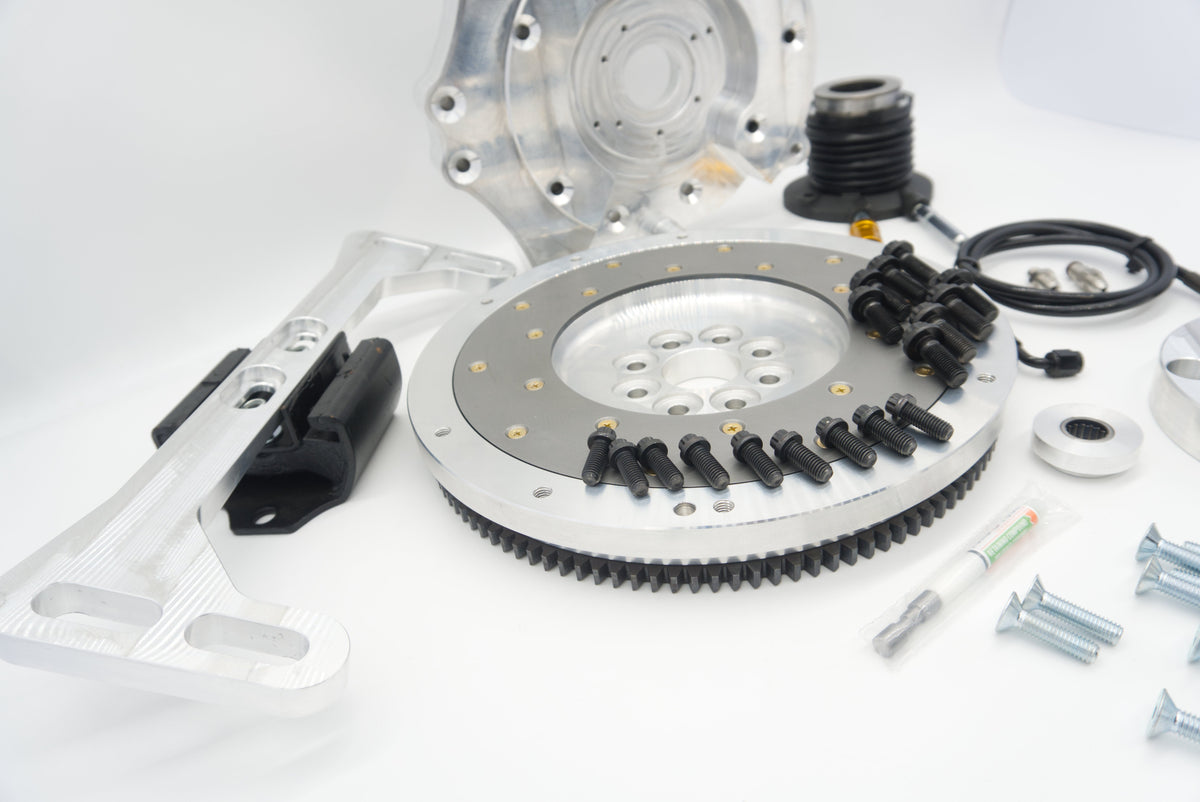

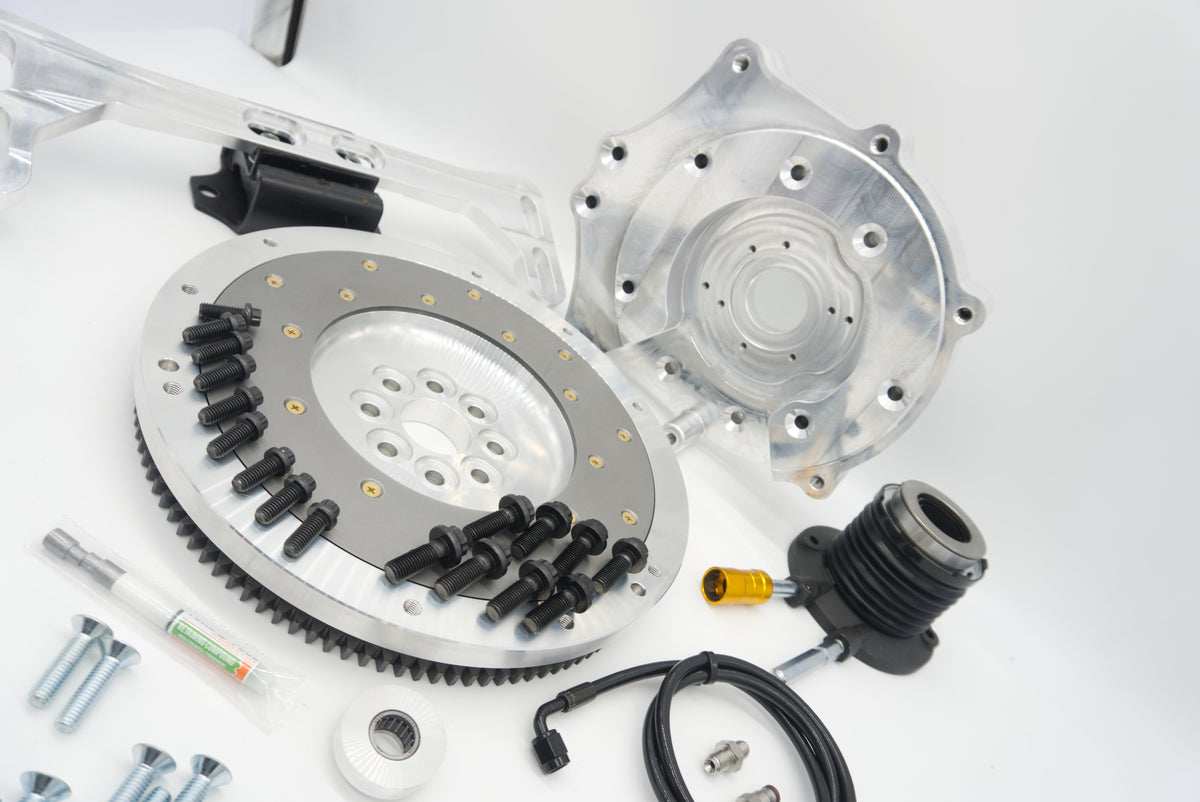

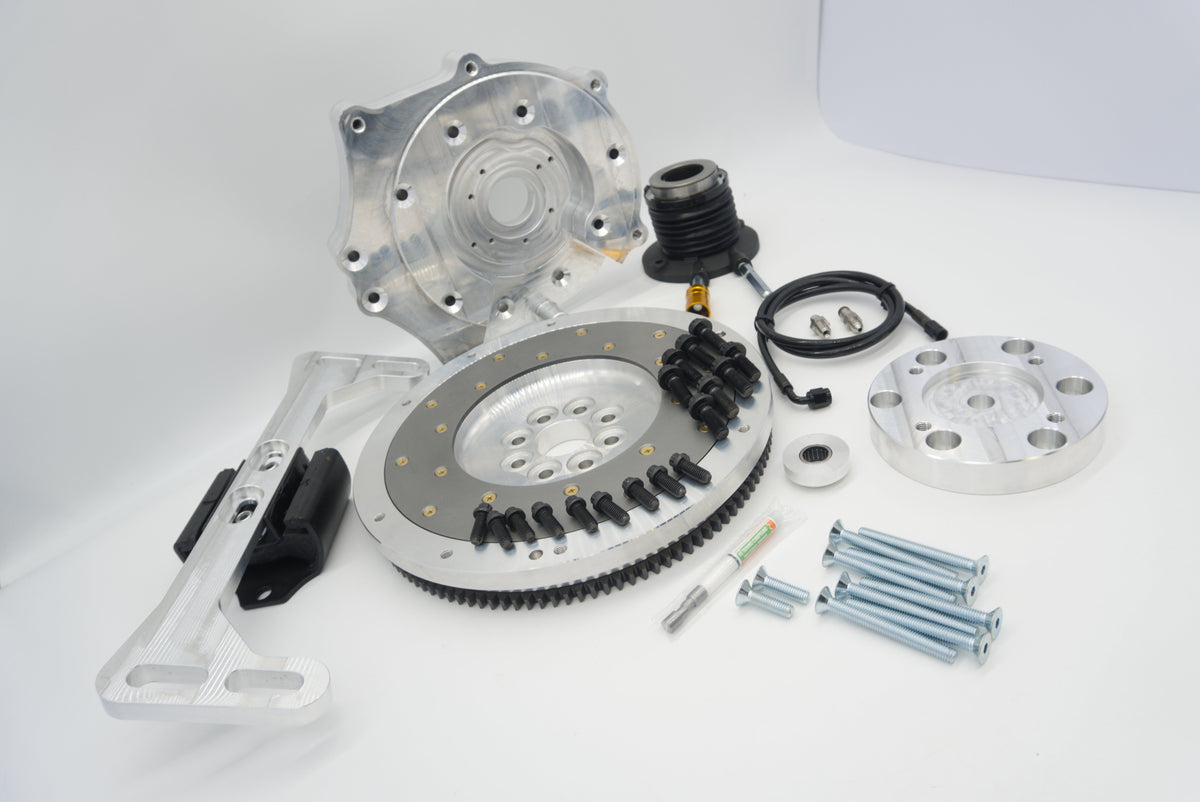

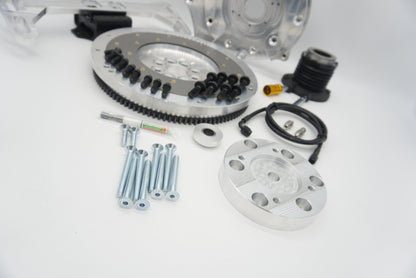

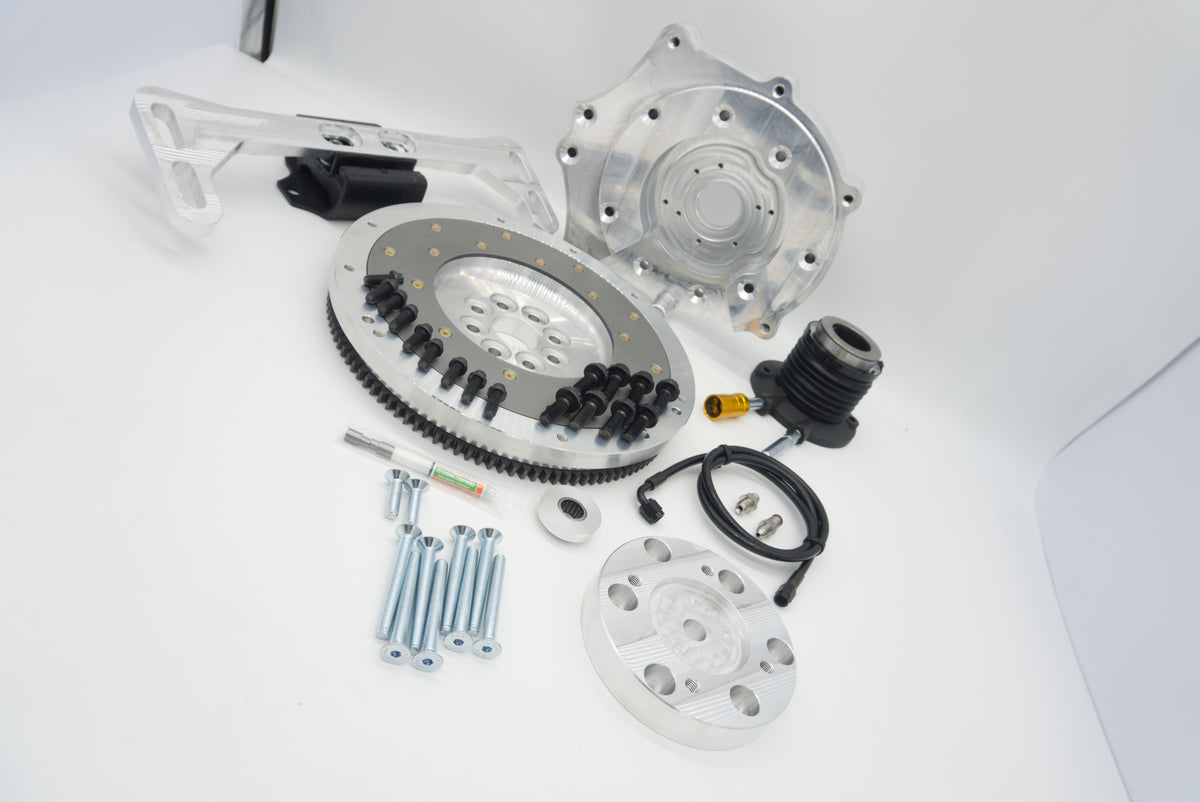

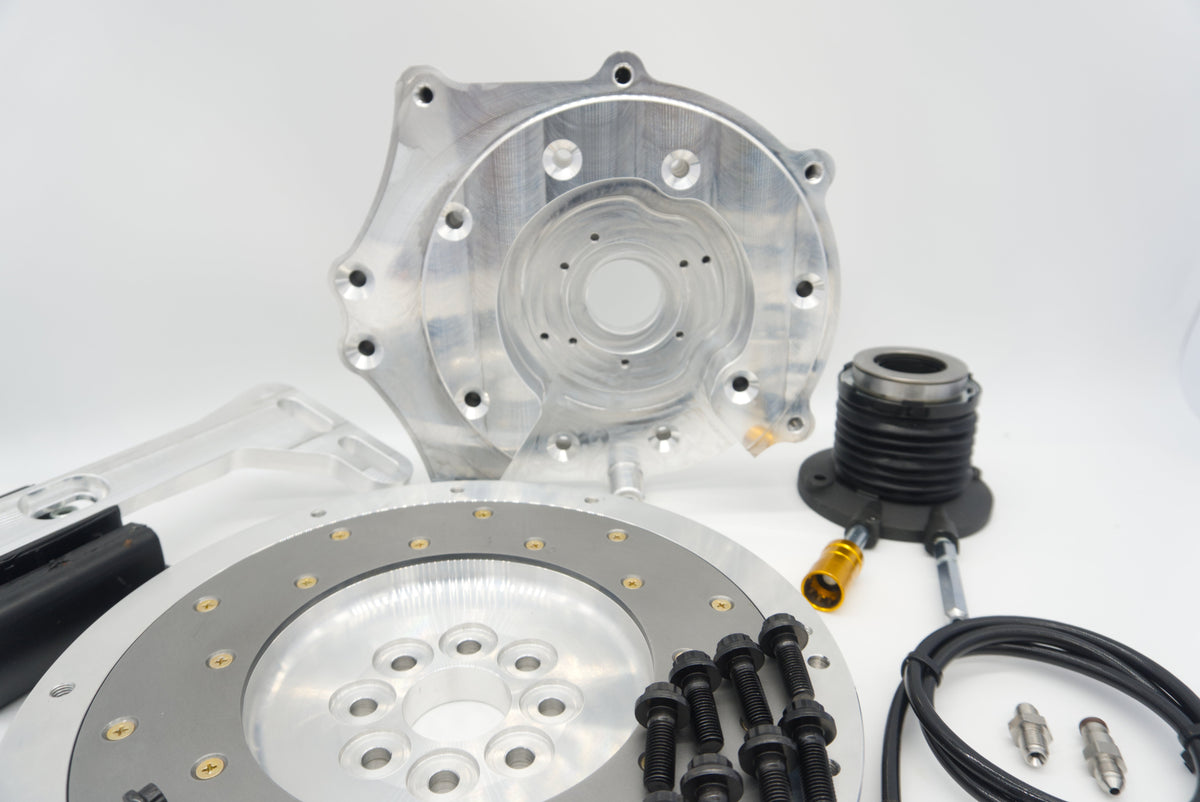

Base Kit: J1 J2 Adapter Plate, Flywheel, Transmission Crossmember, Pilot Bearing, Bearing Rings, Hardware

Key Features:

Billet 6061 Aluminum: Crafted from aircraft-grade aluminum for durability and strength.
Compatibility: Compatible with Single Disc 350Z/370Z Clutch kits from top brands like ACT, SPEC, Competition, and Clutch Masters.
Custom Flywheel: Utilizes the ASE Custom flywheel for CD009 Clutch kit for optimal performance.
Easy Installation: Includes Transmission Crossmember with Mount & Hardware.
Comprehensive Package: Comes with Hardware for Slave, Adapter Plate, Flywheel, and Bell Housing.
Enhanced Compatibility: Uses Bell Housing from Automatic 2JZ (not included) and GM T56 slave cylinder (not included).
Pilot Bearing Adapter Bushing: Included.

Identifying your bell housing — J1, J2 or J3

The J-code refers to the Toyota A340 automatic bell housing this kit mates to, and it is stamped into the casting of your original automatic bell housing. Check there before selecting. If you need a J3 plate you can request one after placing the order — the kits are the same price.

Shifter

Use the rear mount shifter in a Supra MKIV. The front mount shifter cannot be used in this chassis — it sits so far forward that it lands in the center of the radio.

Slave cylinder

This cut-version kit uses the T56 99 Camaro slave cylinder for correct throw. When installed the slave should sit fully compressed against the pressure plate fingers with no preload. Install it before bolting the bell housing to the adapter plate — afterwards the lines cannot be routed.
