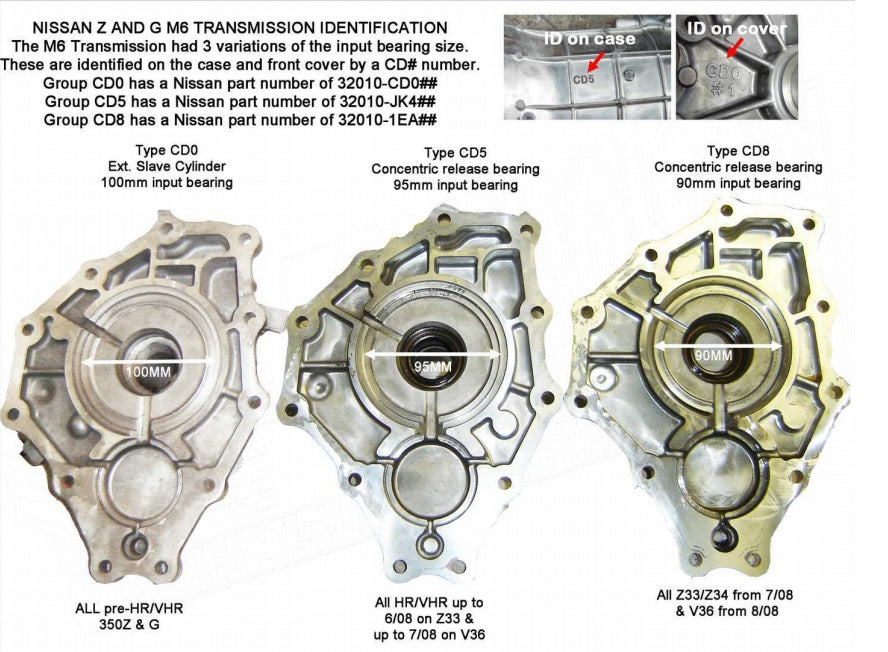

Does it matter whether I have a CD or a JK transmission?

No. CD and JK adapter plates interchange freely. The 350Z uses the CD009 while the 370Z, G37 and later G35 use the JK. The only ASE product where the distinction matters is the front mount shifter.

Can I use a 350Z clutch with a 370Z transmission?

Yes. The clutch kits are the same for this conversion. Only the release bearing differs between them, and that bearing is not used here because the conversion runs the T56 bearing instead.

How do I identify my bell housing J-code?

It is stamped into the casting of your original Toyota A340 automatic bell housing. A J3 plate can be requested after ordering at the same price.

Is a driveshaft included?

No. Driveshafts are ordered separately. Steel and aluminum are both built on 3 inch tube, and carbon is also offered.

What do I need to supply myself?

The bell housing from an automatic 2JZ in J1, J2 or J3, and on the base kit the GM T56 slave cylinder.

What are the torque specs for the adapter plate and bell housing?

Adapter plate countersunk bolts torque to 30 ft-lb and the bell housing torques to 40 ft-lb. Both are engraved on the bottom of the plate.

Should I use thread locker on the adapter plate bolts?

No. The countersunk bolts are small and only torque to 30 ft-lb, so aggressive thread locker means stripping the heads the next time the plate comes off for service.

Do I need to cut the spud?

No. The recess on the ASE plate is machined deep enough to clear it. This was addressed by a design change years ago, but the old advice still circulates.

Does the bell housing need notching?

Only on the J3. The J3 plate is thinner because the J3 transmission is deeper, which leaves less vertical height and causes the clutch lines to interfere. J1 and J2 plates are thicker and need no notching.

1 8

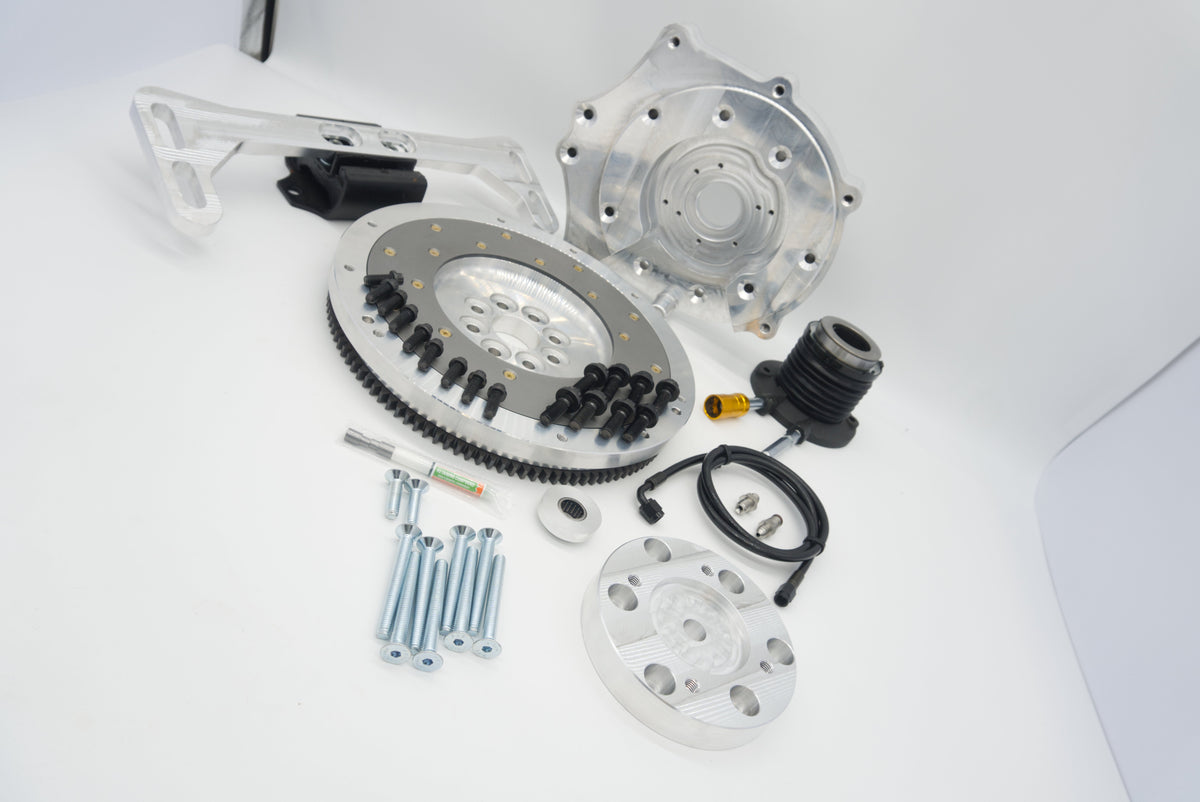

2JZGTE 2JZ 1JZ to CD009 350Z 370Z G35 G37 Transmission Adapter | ASE

Q: Which slave cylinder does this kit use?

The T56 99 Camaro slave cylinder, installed fully compressed against the pressure plate fingers with no preload. Install it before bolting the bell housing to the adapter plate, because afterwards the lines cannot be routed.

$1,399.99

Sale Sold out

Kit Base Kit T56 Slave Line Combo Tilton Slave Line Combo

Shifter Extension None Yes Please Add

Bell Housing J1 J2 J3

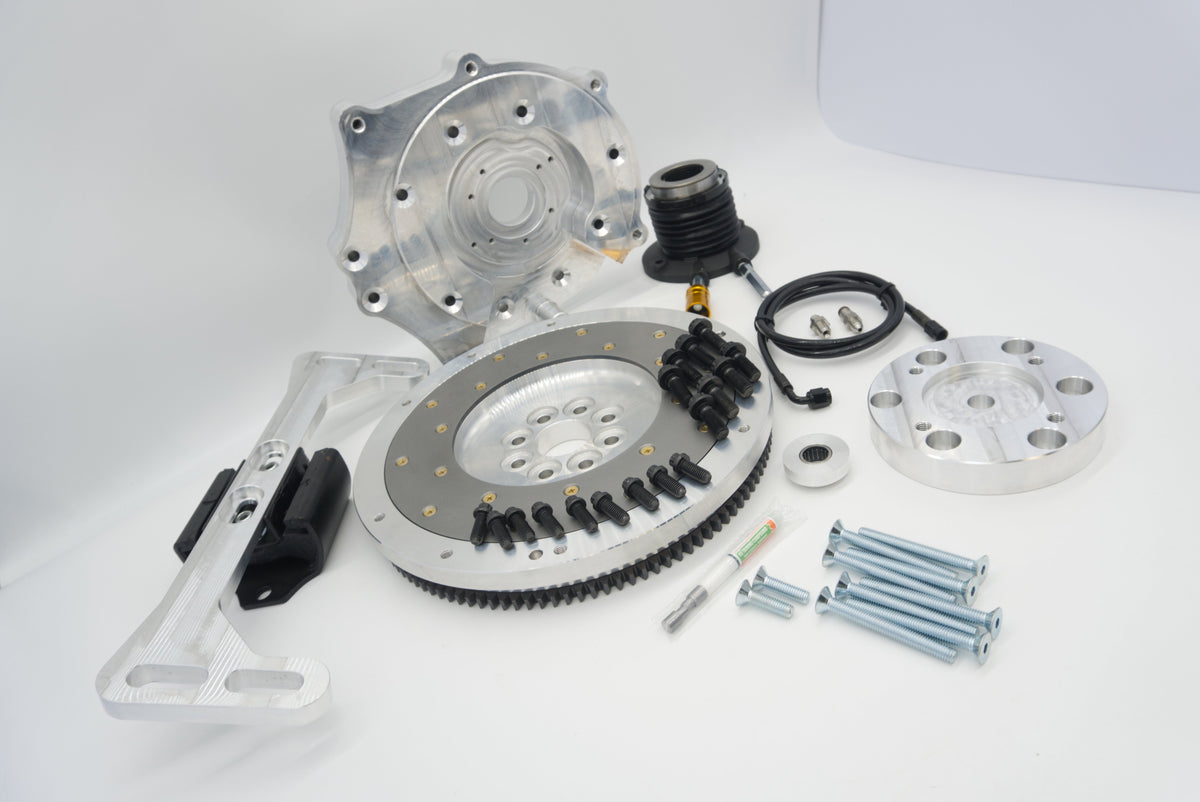

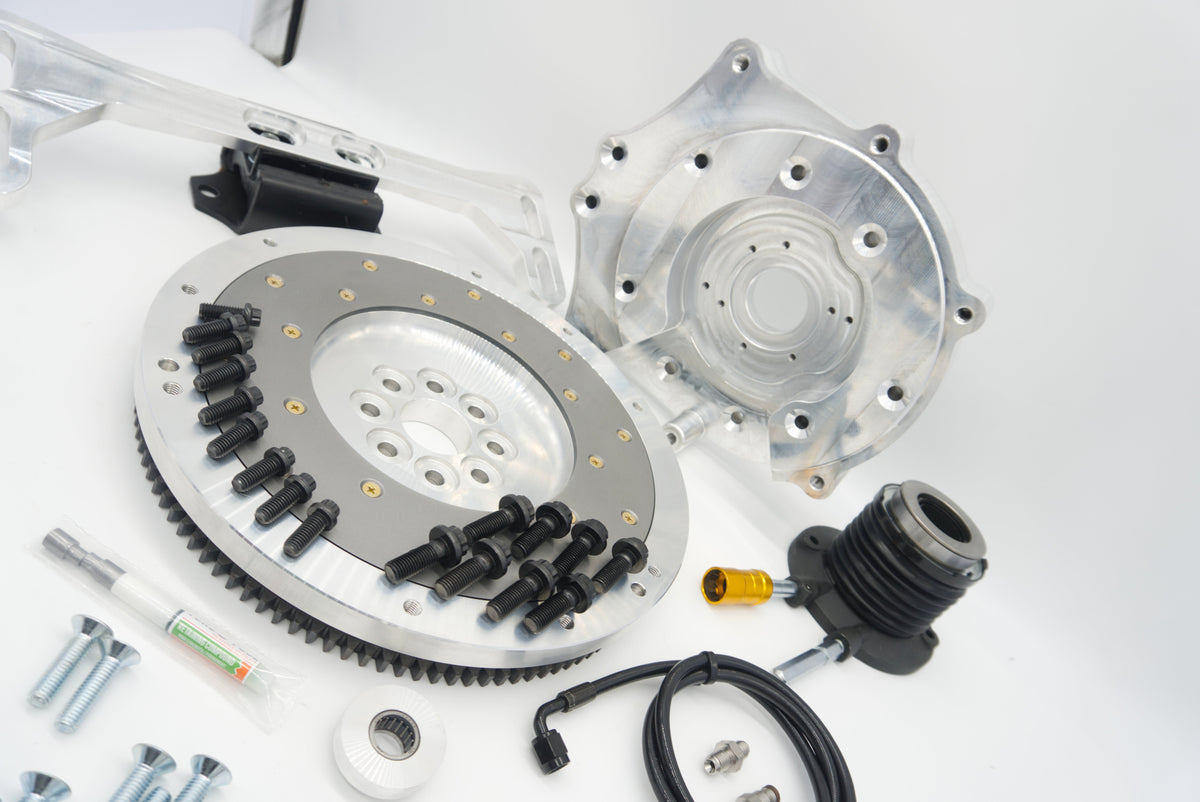

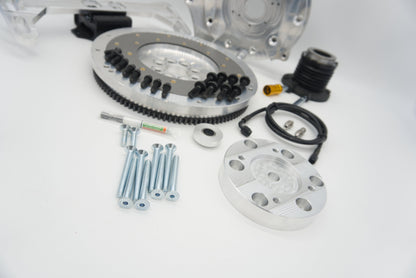

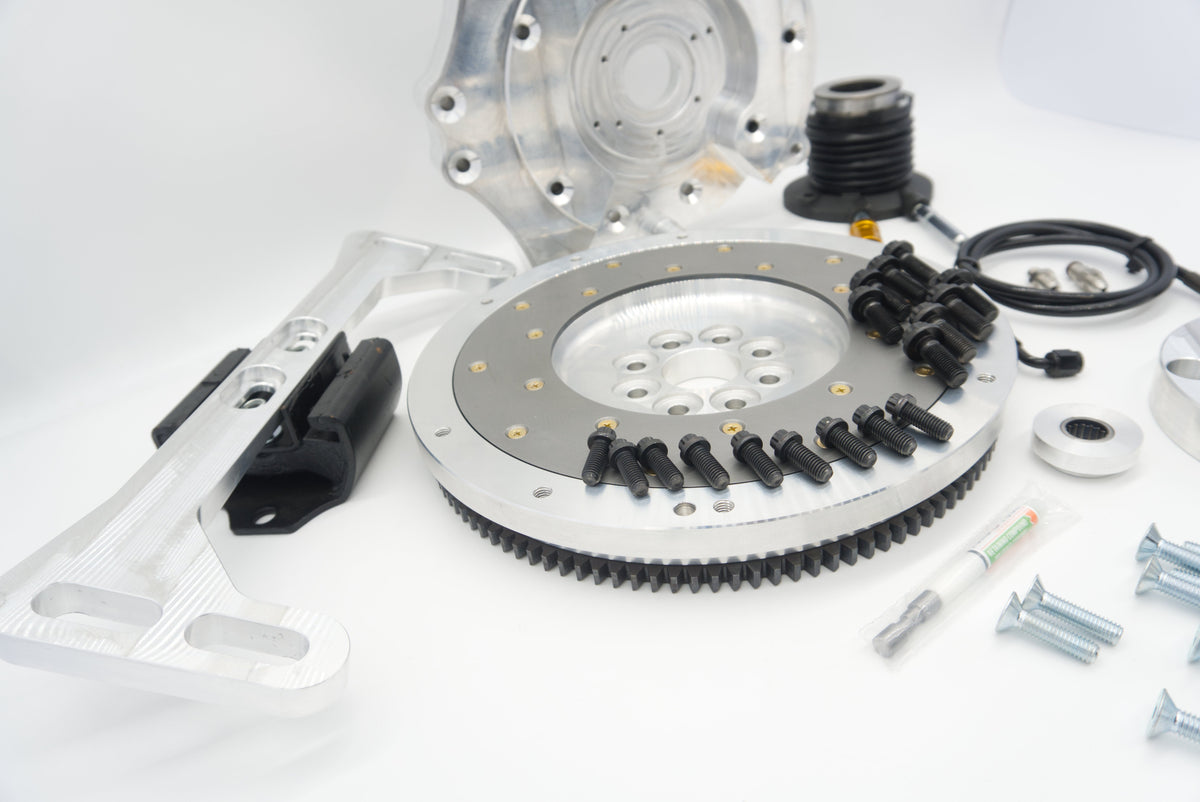

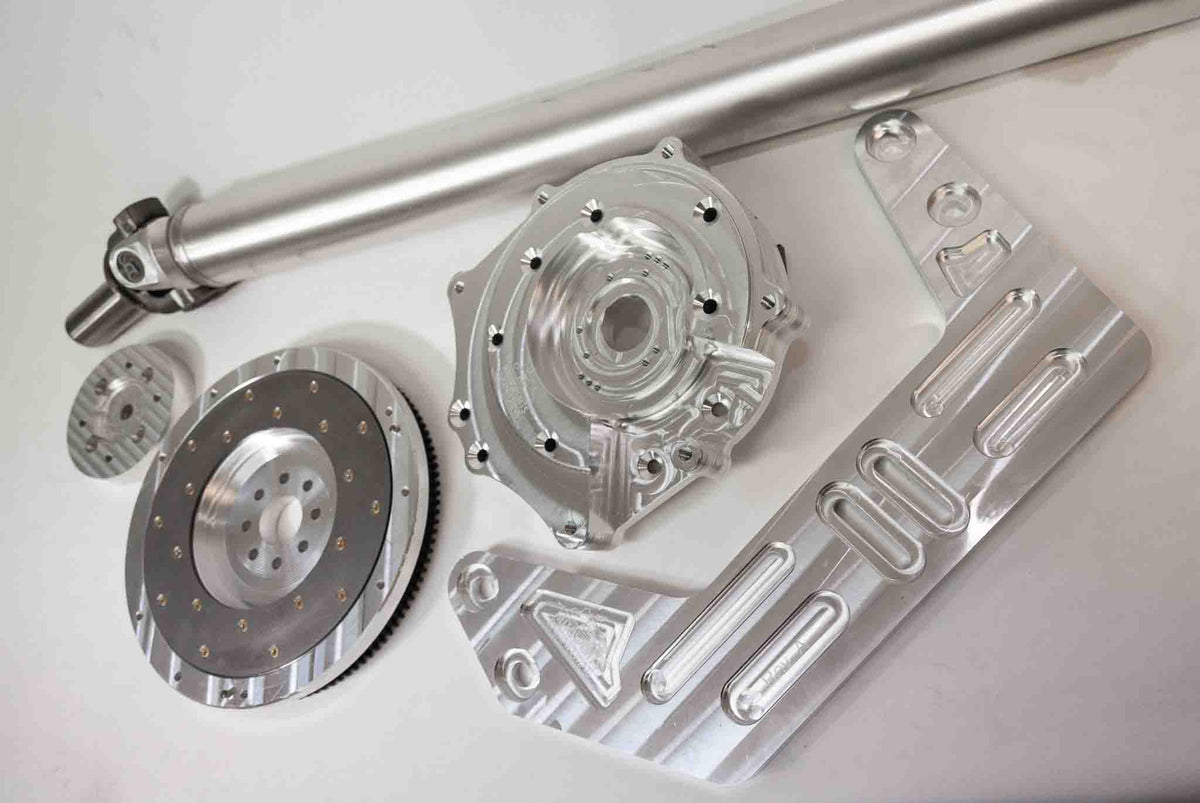

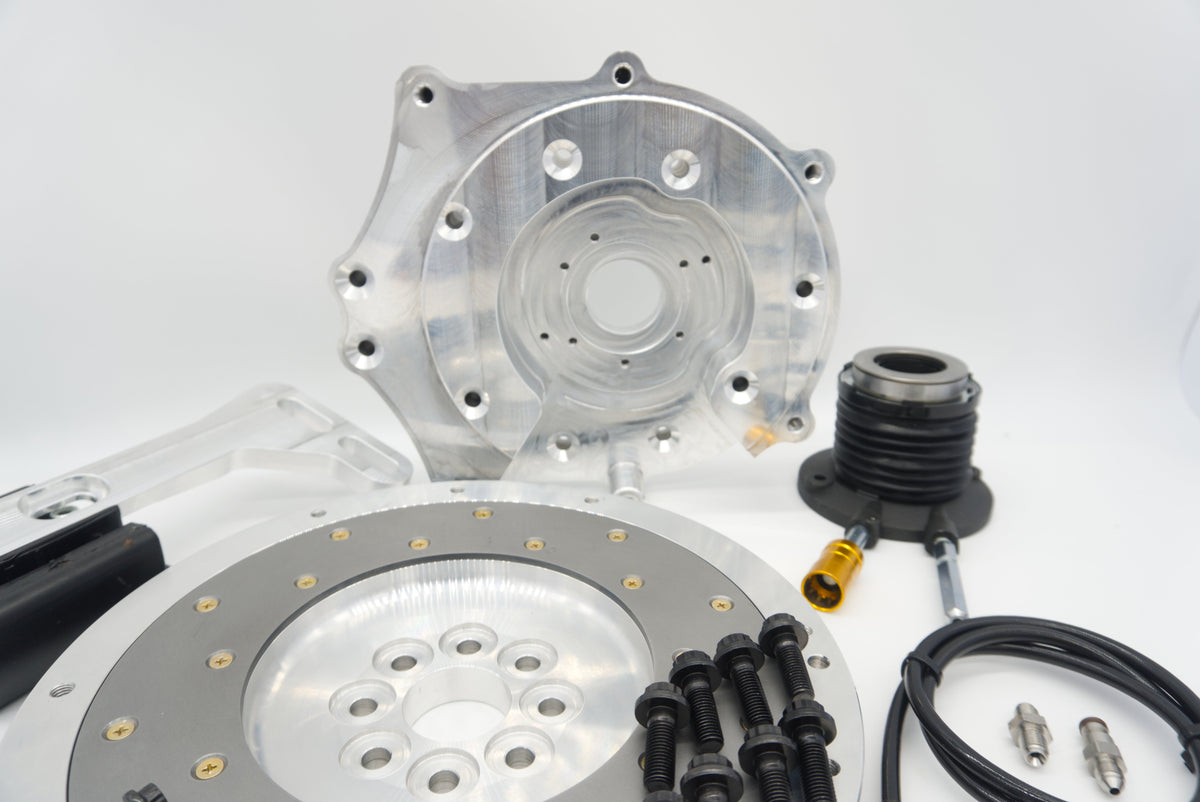

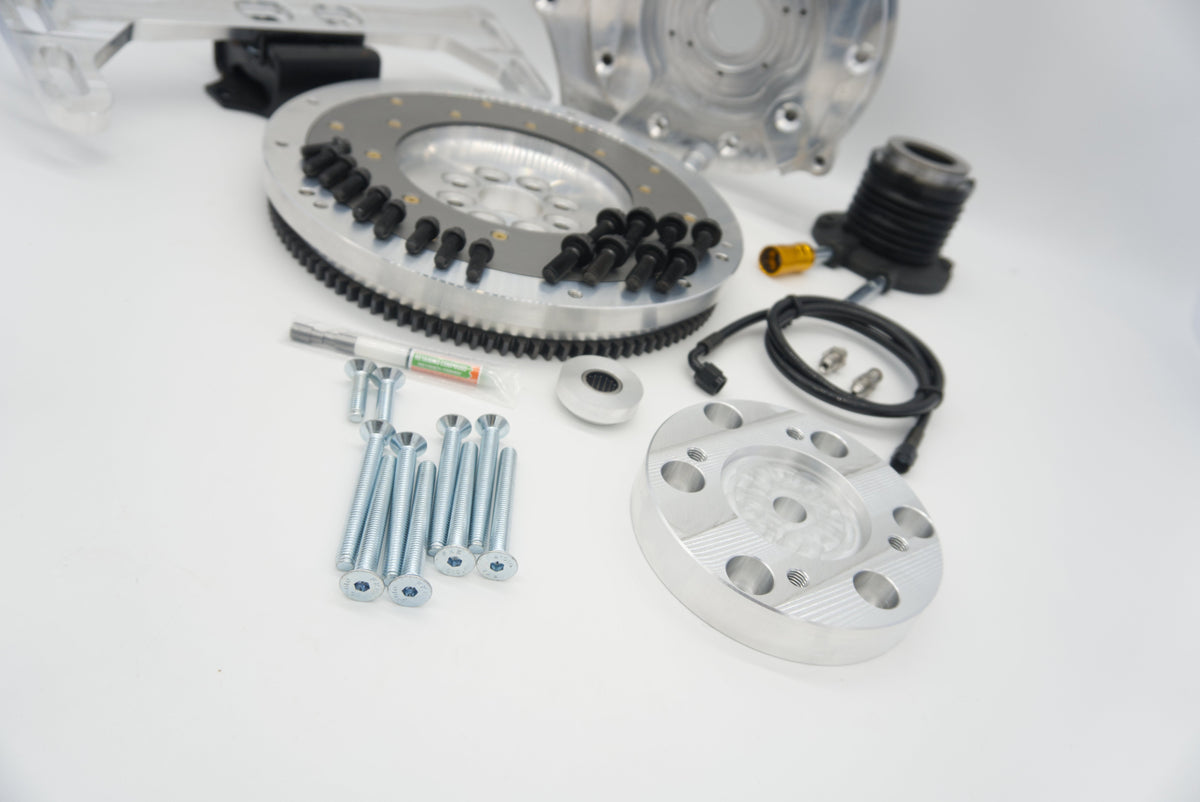

Base Kit: Adapter Plate, Flywheel, Crossmember & Mount, Hardware, Pilot Bearing, Bearing Rings

Billet 6061 Aluminum Construction: Aircraft-grade aluminum for durability and strength.
Compatible with Various Clutch Kits: Works with Single Disc 350Z/370Z Clutch kits from ACT, SPEC, Competition, Clutch Masters and others.
Custom Flywheel Included: ASE Custom flywheel designed for the CD009 Clutch kit.
Comprehensive Kit: Includes Transmission Crossmember with Mount & Hardware.
Full Hardware Set: Hardware for Slave, Adapter Plate, Flywheel & Bell Housing.
Pilot Bearing Adapter Bushing: Included.
Note: Bell Housing from Automatic 2JZ, GM T56 slave cylinder, and J1 J2 or J3 bell housing not included.

Identifying your bell housing — J1, J2 or J3

The J-code refers to the Toyota A340 automatic bell housing and is stamped into the casting of your original automatic bell housing. A J3 plate can be requested after ordering at the same price.

If you run a J3, note the bell housing must be notched for clutch line clearance — the J3 plate is thinner because the J3 transmission is deeper. J1 and J2 do not require this.

CD or JK transmission?

Either works — CD and JK adapter plates interchange freely. The 350Z uses the CD009; the 370Z, G37 and later G35 use the JK. The only ASE product where the distinction matters is the front mount shifter.

Slave cylinder

Uses the T56 99 Camaro slave cylinder for correct throw, installed fully compressed against the pressure plate fingers with no preload. Install it before bolting the bell housing to the plate — afterwards the lines cannot be routed.

Clutch note

350Z and 370Z clutch kits are the same for this conversion — only the release bearing differs, and that bearing is not used here because the conversion runs the T56 bearing instead.
