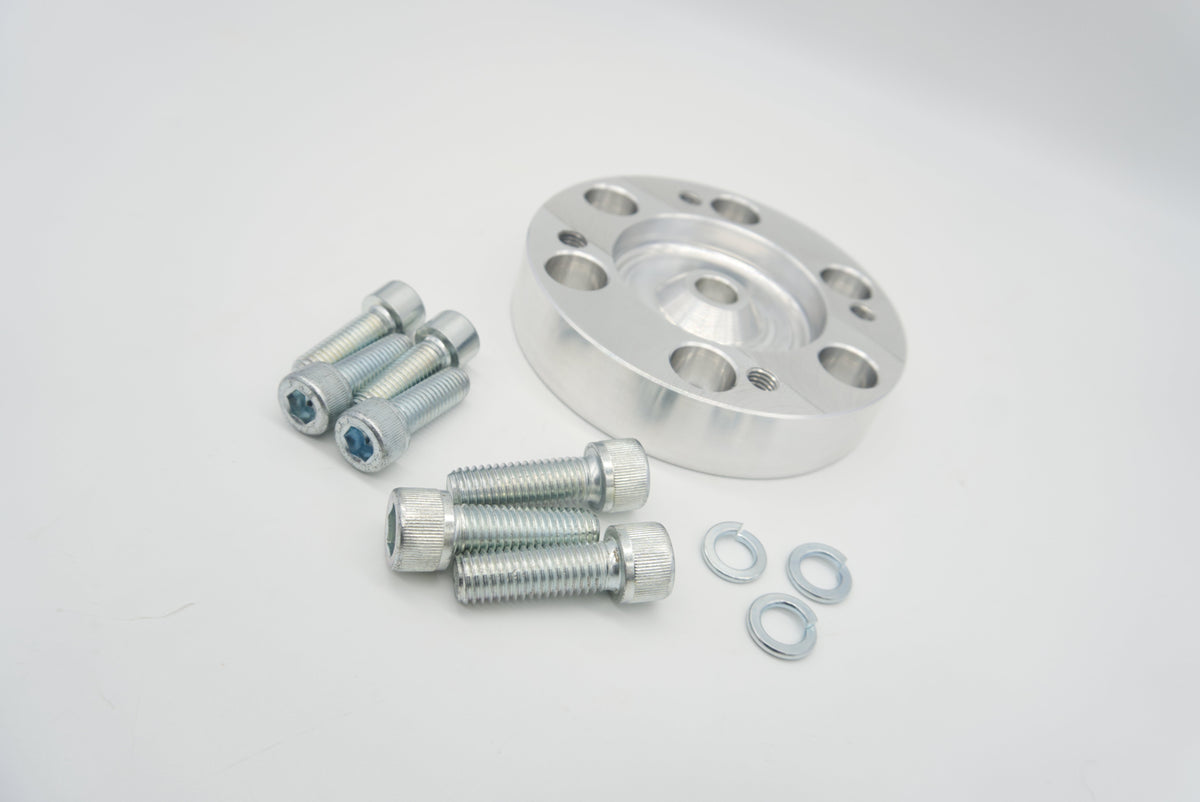

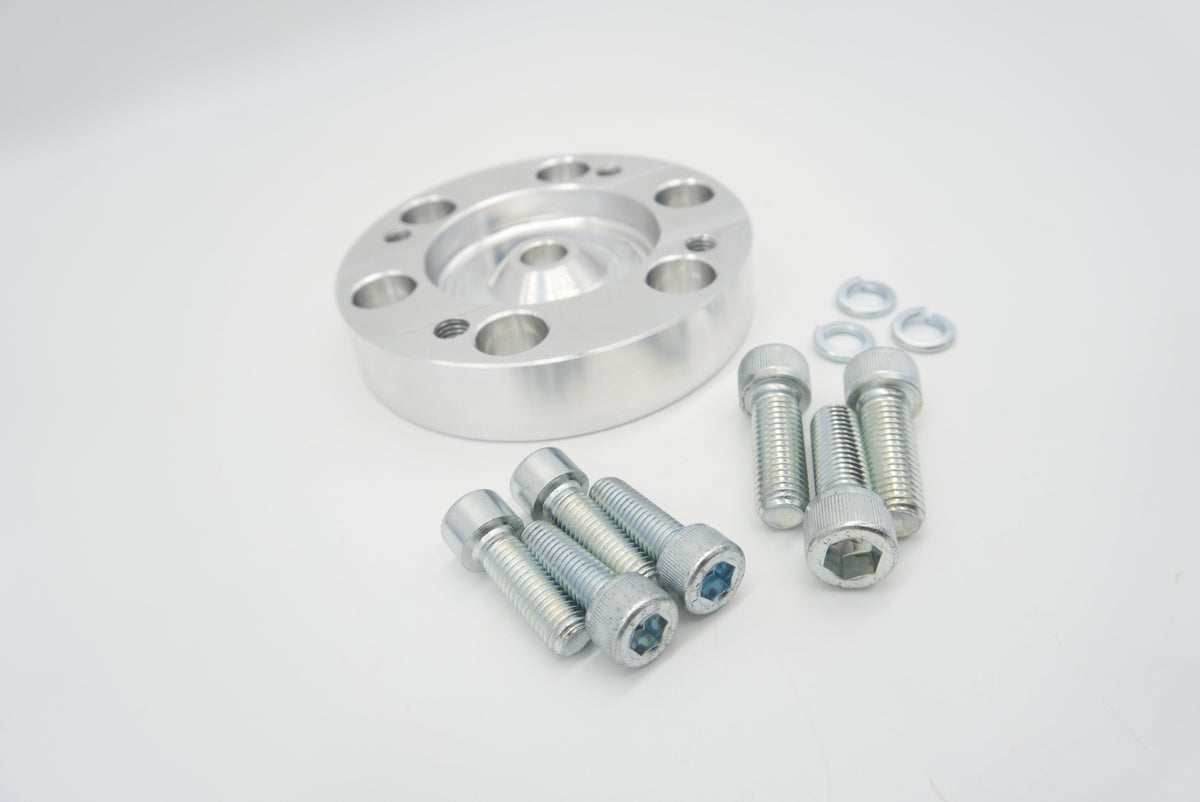

Driveshaft Adapter BMW E36 E46 Z3 E39 96MM Bolt Circle | ASE

• E36, E46, Z3, and 6-cylinder E39 models equipped with ZF 5 or 6-speeds, or Getrag M 6-speed transmissions. Also compatible with B48-based 8HP50 transmissions.
• 96MM Bolt Circle Diameter
• This will not work with the stock driveshaft, it is for a one piece driveshaft with a 1310 (Dana Spicer 2-2-479) & 1350 (Dana Spicer 3-2-119) rear flanges
• With this adapter, we can make you a driveshaft to fit your custom 1 piece shaft
• 2.75" Center Pilot
• 10x1.5mm U-Joint Mounting Holes
• 12x1.75mm Transmission Mounting Holes
• All 12.9 Hardware Included to attach differential and driveshaft

Check your bolt circle before ordering

ASE lists driveshaft adapters in several bolt circle diameters and they are not interchangeable. This one is 96mm, covering E36, E46, Z3 and six-cylinder E39 with ZF 5/6-speed or Getrag M 6-speed, plus B48-based 8HP50. The 105mm version covers N54/N55 135i and 335i and B58-based 8HP units. Measure your output flange bolt circle rather than going by chassis alone.

This requires a custom driveshaft

The adapter will not work with a stock driveshaft. ASE can build a one-piece shaft to suit — steel or aluminum, both on 3" tube, or carbon, typically in 2–3 days.
